Proton battery promises cheap energy storage that’s kinder to nature

Proton battery promises cheap energy storage that’s kinder to nature

Engineers in Melbourne are vying for pole position in the global race to make a cheap rechargeable battery for storing solar energy that does not rely on scarce natural resources.

Their latest experimental ‘proton battery’ could one day be developed to power homes, vehicles and devices – without the end-of-life environmental challenges of lithium-ion batteries. RMIT University has patented the latest developments in this technology internationally.

The battery uses a carbon electrode to store hydrogen that has been split from water, and then works as a hydrogen fuel cell to produce electricity.

The RMIT team is now embarking on a two-year research collaboration with Italian-based international automotive component supplier, Eldor Corporation, to develop and prototype this technology. RMIT has been collaborating with Eldor over the past five years on the same technology.

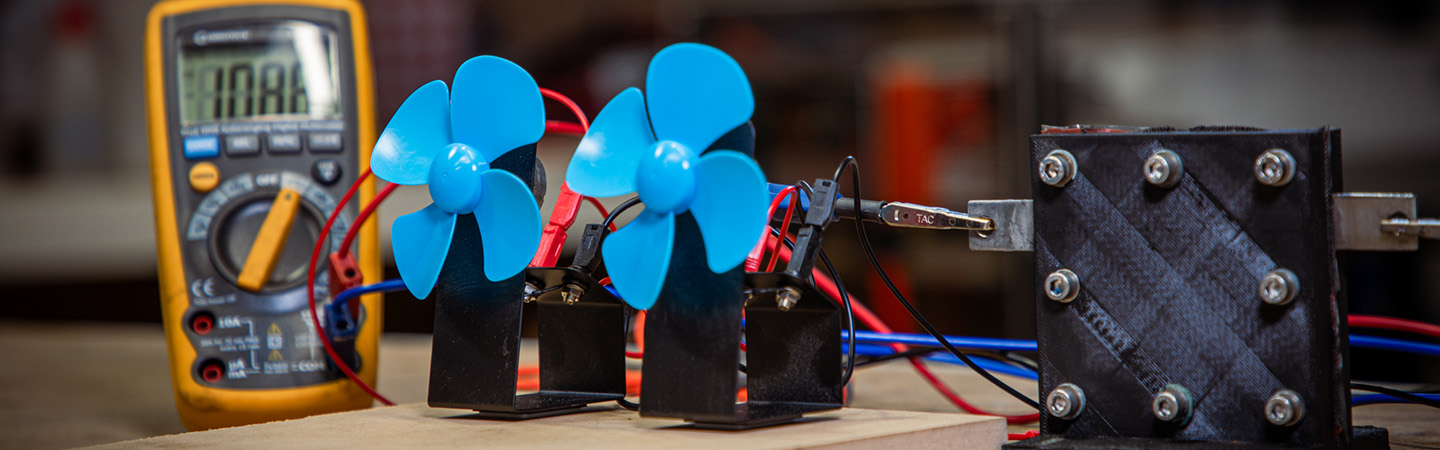

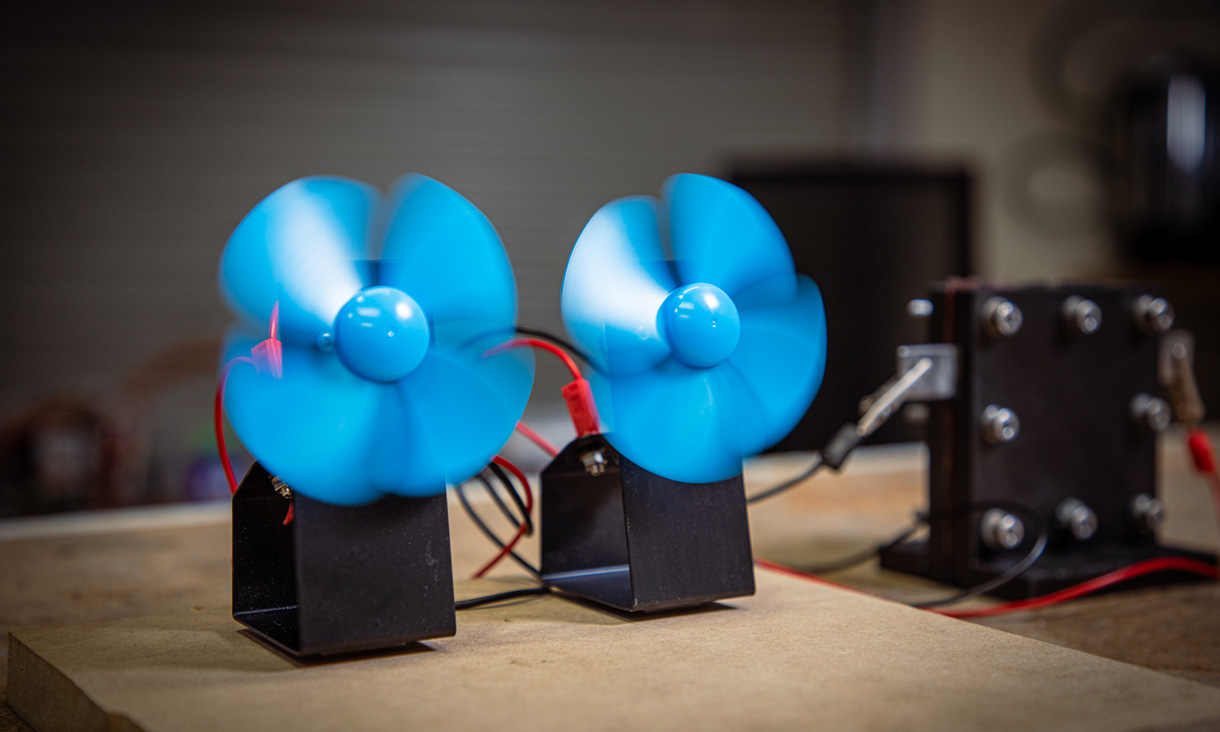

The team has demonstrated the proton battery as a working device that can power small fans for several minutes. Credit: RMIT University The team has demonstrated the proton battery as a working device that can power small fans for several minutes. Credit: RMIT University

Lead researcher RMIT Professor John Andrews said recent design improvements to their proton battery meant it was becoming competitive as a carbon-neutral alternative to lithium-ion batteries.

“As the world shifts to intermittent renewable energy to achieve net-zero greenhouse emissions, additional storage options that are efficient, cheap, safe and have secure supply chains will be in high demand,” said Andrews, from the School of Engineering.

“That’s where this proton battery – which is a very equitable and safe technology – could have real value and why we are keen to continue developing it into a viable commercial alternative.

“There are also no end-of-life environmental challenges with a proton battery, since all components and materials can be rejuvenated, reused or recycled.”

Dr Shahin Heidari (left) and Dr Seyed Niya with the proton battery operating two small fans in the RMIT lab. Credit: RMIT University Dr Shahin Heidari (left) and Dr Seyed Niya with the proton battery operating two small fans in the RMIT lab. Credit: RMIT University

What has the RMIT team achieved with their latest battery?

The team has demonstrated the proton battery as a working device that can power several small fans and a light for several minutes.

Andrews said their latest battery’s storage capacity of 2.2 wt% hydrogen in its carbon electrode was nearly three times that of their 2018 prototype, and more than double of other reported electrochemical hydrogen storage systems.

“Our battery has an energy-per-unit mass already comparable with commercially-available lithium-ion batteries, while being much safer and better for the planet in terms of taking less resources out of the ground,” he said.

“Our battery is also potentially capable of very fast charging.

“The main resource used in our proton battery is carbon, which is abundant, available in all countries and cheap compared to the resources needed for other types of rechargeable battery such as lithium, cobalt and vanadium.”

The planet's supply of lithium is concentrated in just a few countries, while other metals such as cobalt that go into lithium batteries are becoming increasingly scarce and costly.

The recent performance gains have been achieved by design changes that enhance electrochemical reactions in the battery.

How does the proton battery work?

During charging, the proton battery splits water molecules to generate protons, which bond to a carbon electrode.

Andrews said the proton battery avoided the energy-wasting steps of storing hydrogen gas at high pressure, and then splitting these gas molecules again in fuel cells.

“When discharging, protons are released again from the carbon electrode and pass through a membrane to combine with oxygen from the air to form water – this is the reaction that generates power,” he said.

“Our proton battery has much lower losses than conventional hydrogen systems, making it directly comparable to lithium-ion batteries in terms of energy efficiency.”

Dr Shahin Heidari (left), Professor John Andrews and Dr Seyed Niya with a demonstration of the proton battery operating two small fans in the RMIT lab. Credit: RMIT University Dr Shahin Heidari (left), Professor John Andrews and Dr Seyed Niya with a demonstration of the proton battery operating two small fans in the RMIT lab. Credit: RMIT University

What are the next steps?

“We are looking forward to developing this technology further in Melbourne and Italy, in partnership with Eldor Corporation, to produce a prototype battery with a storage capacity that meets the needs of a range of domestic and commercial applications,” Andrews said.

“The aim of this collaboration is to scale up the system from the watt to the kilowatt and ultimately to the megawatt scale.”

The research team is from the Sustainable Hydrogen Energy Laboratory (SHEL) in the School of Engineering. Credit: RMIT University The research team is from the Sustainable Hydrogen Energy Laboratory (SHEL) in the School of Engineering. Credit: RMIT University

Technology supported by peer-reviewed research and government funding

The results and analysis of the RMIT team’s work on the proton battery have been published in the Journal of Power Sources.

Andrews co-authored ‘Enhancement of the performance of a proton battery’ with Dr Seyed Mohammad Rezaei Niya and Dr Shahin Heidari in the Journal of Power Sources (DOI: 10.1016/j.jpowsour.2022.231808).

The RMIT team acknowledges funding by the Australian Renewable Energy Agency (ARENA) and the Victorian Government through a VESKI Study Melbourne Research Partnerships grant that have supported their earlier work on the proton battery.


Story: Will Wright

27 July 2023
